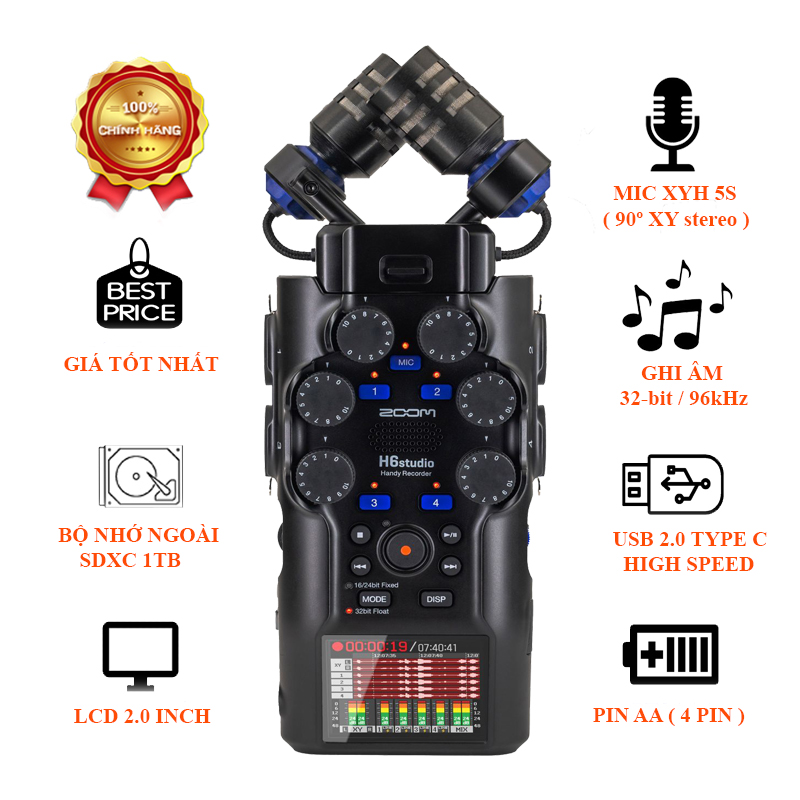

Máy Ghi Âm Zoom H6Studio

INPUT AND OUTPUT CHANNELS
Inputs Mic capsule 1
MIC/LINE (mono) 4
Outputs LINE OUT 1
Headphone 1
Built-in speaker (mono) 1
INPUTS
XY mic (XYH-5s) 90º XY stereo format
Pickup pattern Unidirectional
Sensitivity –41 dB/Pa at 1 kHz
Maximum sound pressure input 140 dB SPL
MIC/LINE IN (XYH-5s) Connector 1 stereo mini jack
Input gain −∞ – +60 dB
Input impedance 2 kΩ or more
Plug-in power 2.5 V
MIC/LINE (mono) Connectors 4 XLR/TRS combo jacks
(XLR：2 HOT, TRS：TIP HOT）
Input gain −∞ – +60 dB
Input impedance MIC: 3 kΩ or more
LINE: 3 kΩ or more
Maximum input level MIC: +4 dBu
LINE: +24 dBu
Phantom power +48 V
Equivalent input noise –127 dBu or less (IHF-A) at 150Ω input
OUTPUTS
LINE OUT Connector 1 stereo mini jack
Maximum output level +1 dBu
Output impedance 110 Ω or less
Headphone Connector 1 stereo mini jack
Maximum output level 20 ｍW + 20 ｍW（when 32 Ω load）
Output impedance 10 Ω or less
Built-in speaker Type 20 mm x 30 mm elliptical dynamic speaker
Effective maximum output 250 mW
RECORDER
Maximum simultaneous recording tracks 8
Maximum simultaneous playback tracks 6
Recording formats WAV
44.1/48/96/192 kHz,
16-bit/24-bit/32-bit float
mono/stereo
BWF and iXML formats supported
Recording media microSDHC memory cards
microSDXC memory cards
CLICK HERE for information about microSD cards that have been confirmed to work with this unit.

DISPLAY
2.00" full-color LCD 320 x 240
USB
Connector USB Type-C
• Use a USB cable that supports data transfer.
Audio Interface USB 2.0 High Speed
Input and output channels 6 in / 2 out (Multi)
2 in / 2 out (Stereo)
Sampling frequencies 44.1/48/96 kHz (audio interface only)
44.1/48 kHz (audio interface + onboard recording)
Bit depths 24-bit, 32-bit float
File transfer USB 2.0 High Speed
REMOTE
Dedicated wireless adapter ZOOM BTA-1
POWER
4 AA batteries Alkaline, lithium or rechargeable NiMH batteries
AC Adapter ZOOM AD-17 (DC 5 V/1 A)
• USB bus power is supported.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording
Alkaline batteries About 15 hours
NiMH batteries (1900 mAh) About 12 hours
Lithium batteries About 26 hours
At 48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track (XYH-5s and inputs 1–4) recording
Alkaline batteries About 4.5 hours
NiMH batteries (1900 mAh) About 5 hours
Lithium batteries About 11 hours
At 48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track (XYH-5s and inputs 1–4) recording
Alkaline batteries About 2 hours
NiMH batteries (1900 mAh) About 3 hours
Lithium batteries About 6.5 hours
At 192 kHz/32-bit float with phantom power on (INPUTS 1-4), headphones used (33Ω load), LINE OUT used (10KΩ load), REMOTE used (BTA-1), Power Saving On, Display Brightness Bright
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.

Power consumption 5 W maximum
Dimensions 83.0 mm (W) × 221.0 mm (D) × 54.5 mm (H)
Weight 477 g (including batteries)
